Acoustical Material Glass Wool Board For Building , Glass Wool Panel
Quick Detail:
Glasswool board is commonly used as thermal, insulation and acoustical material for residential, commercial and industrial buildings or equipments.
Description:
Tungkin glasswool slab is composed of fine, stable and uniformly textured inorganic glass fibers bonded together by non water soluble and fire-retardant thermosetting resin, and formed into boards or slabs
Applications:
Tungkin glasswool slabs is intended for use in commercial, institutional, industrial and residential construction as thermal and acoustical insulation for exterior walls, interior walls and partitions, cavity wall construction, floors, precast structures, prefabricated houses and for the exterior of duct work and mechanical, vessels and tanks where abuse resistance in required
Specifications:
Standard size:
| Density | Thickness | Length mm 1000-2400 |
| Kg/m3 | mm |
| 24 | 25 , 30, 40 50, 75 |
| | |
| 28 | 20, 25, 75 40, 50, 75 |
| 32 |
| 36 | 15, 20, 25, 30 40, 50, 75 |
| 40 | Width (mm) 600 900 1200 |
| 44 |
| 48 |
| 60 | 15, 20, 25 |
| 64 |
| 80 |
| 96 |
Main Technical Property
| Density (Kg/m3) | Tolerance | Thermal Conductivity At 24°C(+5-2) | Service Temperature | Fiber Diameter | Shot Content | Moisture Resistance | Combustibility |
| W/ (m.k) | °C | mm | % | % | |
| 24 | ±2 | ≤0.035 | ≥250 | 5-8 | ≤0.2 | ≤1.0 | (A) Non-combustible |
| 28 |
| 32 | ±3 | ≤0.034 | ≥300 |
| 36 |
| 40 | +4 -3 | ≤0.034 | ≥350 |
| 44 |
| 48 | ≤0.033 |
| 60 | ±6 | ≥400 |
| 64 | ≤0.032 |
| 80 | ±7 |
| 96 | ±8 |

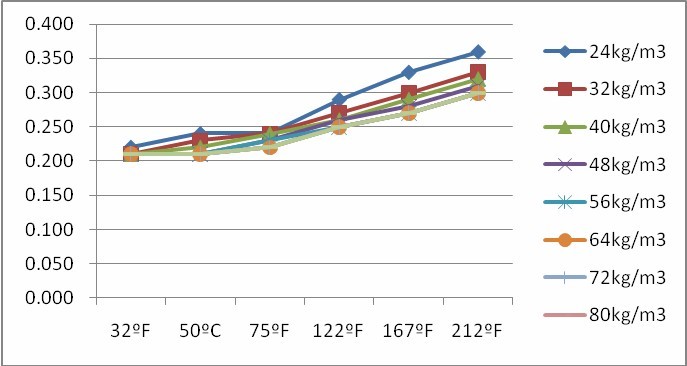

Chart of Thermal conductivity:
Sound Absorption Coefficient
Reverberation room method
| Density (kg/m3) | Thickness (mm) | 250,500,1000,2000HZ (Average) |
| 24, 28 | 25, 40 | 0.6 |
| 50, 75, 100 | 0.8 |
| 32,36,40,44 | 25,40 | 0.6 |
| 50,75 | 0.8 |
| 48 | 15 | 0.4 |
| 20,25 | 0.6 |
| 40,50 | 0.8 |
| 64, 80, 90 | 15 | 0.4 |
| 20,25 | 0.6 |
Competitive Advantage:
Fire resistance, excellent thermal conductivity and resistance, excellent acoustical property, light weight
